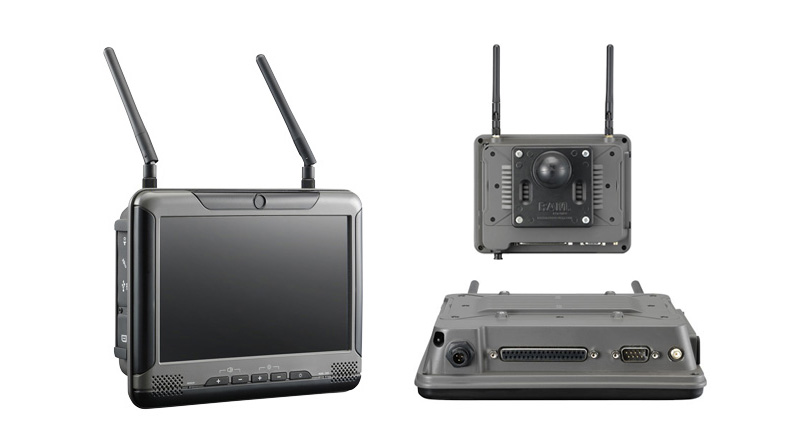

7寸強固型車載一體機

TFVC-700

產品介紹
技術規格
應用案例
相關文檔

TFVC系列是嚴苛環境下工業應用的最佳選擇。不僅適用于交通車輛，還可用于建筑卡車、林業卡車、農用車、起重機以及其他行駛于顛簸道路或惡劣環境下的車輛。

●TFVC系列是一體化的車載計算機，集成高品質顯示屏和觸摸屏。同時配置警示指示燈，以監控系統狀態，中等尺寸的VMC產品配置了10個可編程鍵可在不同應用間輕松切換。

●智能電源管理和SMS/RTC喚醒功能是TFVC系列所有產品的標準特性。

●針對不同應用需求，TFVC系列可通過不同CPU主板、可選的CANbus和I/O板選擇，提供靈活的配置。

●在設計方面，包括外觀材料、抗震/抗沖擊功能，均符合MIL-STD-810F標準，外殼符合IP54、IP65或IP67防護等級，防塵、防水。

TFVC 700

7英寸一體化的車載電腦，帶觸摸屏和智能亮度控制

●7" WVGA TFT LCD，帶LED背光，亮度可達400 nits

●緊湊和無風扇設計

●內置Intel? Atom? E640 1.0GHz 處理器

●RTC /SMS喚醒功能

●板載GPS接收

●可選多種無線通信

●提供RS-232/422/485, USB 2.0, GPIO 和DB37接口的網絡信號

●寬電壓輸入：6~36V

●符合IP54防護等級

●通過CE/ FCC/ e13 Mark認證

General	Cooling: System FanlessEnclosure: Plastic PC + ABS with aluminum die casting heatsinkMounting: Support VESA 75, stand mountingDual SMA Type antenna connectors of BT/ Wi-Fi / WWANPower Input: 9~36VDC input with IgnitionPower Consumption: 16WIngress Protection: IP54Dimension: 185.4mm (W) x 141.4mm (H) x 50.42mm (D) (7.3" x 5.57" x 1.99")Weight: 1Kg, 2.20Lb
LCD 屏	7-inch TFT LCD Panel with LED Backlight800 x 480 pixels (WVGA)Brightness: 500 cd/m2 (typical)Contrast Ratio: 600:1 (typical)
觸摸屏傳感器	4-wire resistant touchAnti-Glare Coating SurfaceTransmission Rate: 82 ± 3%
CPU & 芯片組	Intel? Atom? E640 1.0GHzEG20T
內存	On-board DDR2 1GB
存儲接口	1 x mSATA
擴展	Mini-PCIe socket (PCIe + USB+SATA) x 1 (for WLAN module)Mini-PCIe socket (USB) x 1 (for 3.5G module)
正面接口	5 x Control buttons Power on/off Volume control (+/-) Brightness control (+/-)Light Sensor2 x LED indicators2 x Built-in speakers (1W)
側面 I/O	1 x Line-in1 x Line-out1 x USB1 x SIM slot1 x Power Button1 x Reset Button
底部接口	1 x DB9 male connector (RS-232)1 x DB37 female connector (1 x LAN; 2 x USB; 1x RS-232; 1 x RS422/ 485; 6 x GPIO)6~36V wide range DC power input1 x SMA connector for GPS antenna
可選通訊模塊	1 x Wireless LAN 802.11 b/g/n1 x WWAN module
電源管理	Selectable boot-up & shut-down voltage for low power protectionHW design ready for 8-level delay time on/off at user's self configurationPower on/ off ignition, software detectableSupport S4 suspend mode; wake on RTC/ SMS
尺寸	185.4 mm (W) x 141.4 mm (D) x 50.42 mm (H) (7.3" x 5.57" x 1.99")1 Kg (2.20 Lb)
機構	Plastic case with aluminum die casting heatsinkCompliant with IP54
環境	Operating temperatures ambient with air: -20°C to 50°C Storage temperatures: -30°C to 80°CRelative humidity: 10% to 90% (non-condensing)Vibration (random): 2g @5~500HzVibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test
振動	Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20gCrash Hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g
通過認證	CE approvalFCC Class Be13 Mark
